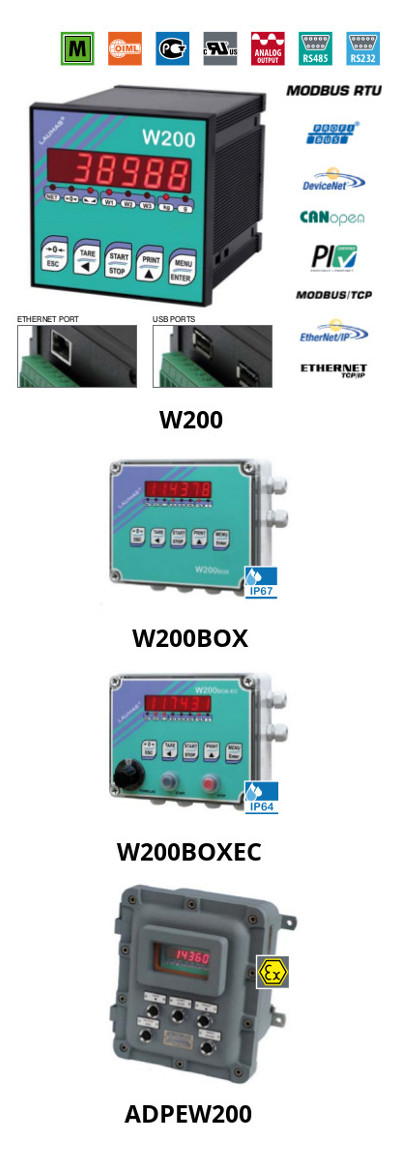

• Weight indicator in DIN case, dimensions 96x96x130 mm. IP54 front panel protection (IP65 optional). Four-key membrane keyboard. Eight indicator LED.
• Possible installations : panel, wall (W200BOX-EC)
• Six-digit red LED display (14 mm height).
• RS232 and RS485 pots (Modbus RTU/Laumas ASCII protocol).
• 3 logic inputs, 5 relay outputs.

• Data storage on USB pen drive
• 16-bit analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
• Alibi memory
• Additional RS485 port
• Fieldbuses : Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP,
  Ethernet/IP, Ethernet TCP/IP for remote management (connectable to your
  PC, smartphone, tablet, etc. via web)

• OIML R76:2006, class III, 10000 divisions 0.2 μV/VSI
• OIML R61 – WELMEC Guide 8.8:2011 (M.I.D.)

• GOST-R – Russia
• UL Recognized component – United States and Canada

• Polycarbonate box, dimensions 170x140x95 mm, four fixing holes Ø4 mm, 6 PG9 cable glands. Five-key membrane keyboard. Eight indicator LED.
• Wall mounting.

• External switch for formula selection (EC option), Sart and Stop buttons.

The system is composed of:

• Explosion proof box, ATEX II 2(1) GD approved, provided with heat-resistant transparent tempered glass window and 5 external buttons which performs the same functions as W200 keyboard.
• W200 series weight indicator.
• Passive fail-safe Zener barriers, ATEX II (1) GD approved.
