Weight Indicators & Transmitters

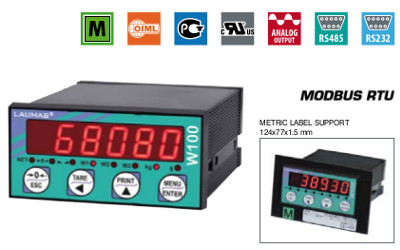

W100

  • Weight indicator in DIN case, dimensions 48x96x130 mm. IP54 front panel protection (IP65 optional). Four-key membrane keyboard. Eight indicator LED.
  • Panel mounting.
  • Six-digit red LED display (14 mm height).
  • RS232 and RS485 pots (Modbus RTU/Laumas ASCII protocol).
  • 3 logic inputs, 5 relay outputs.
Optional :
  •  16-bit analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
  • Alibi memory
  • Additional RS485 port
Certifications :
  • OIML R76:2006, class III, 10000 divisions 0.2 μV/VSI
  • OIML R61 – WELMEC Guide 8.8:2011 (M.I.D.)
On request :
  • GOST-R – Russia
  • UL Recognized component – United States and Canada

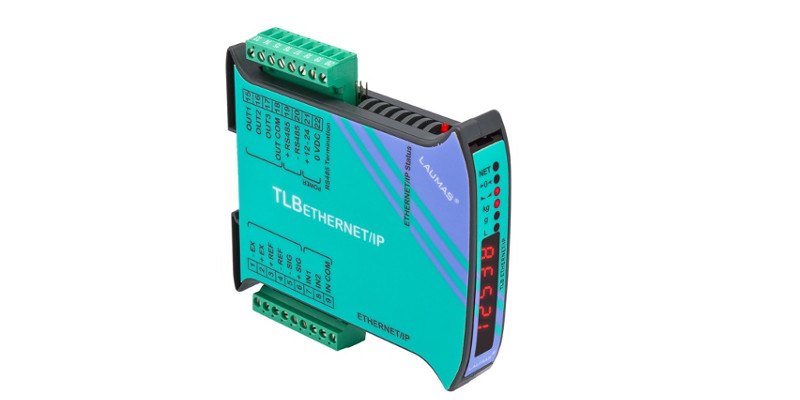

TLB

  • Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator LED.
  • Dimensions : 25x115x120 mm.
  • RS485 port (Modbus RTU/Laumas ASCII protocol).
    2 logic inputs, 3 relay outputs.
  • Back panel mounting on Omega/DIN rail.
Optional :
  • Alibi memory
Certifications :
  • OIML R76:2006, class III, 10000 divisions 0.2 μV/VSI
  • OIML R61 – WELMEC Guide 8.8:2011 (M.I.D.)
On request :
  • GOST-R – Russia
  • UL Recognized component – United States and Canada
  • NTEP – nmax 5000 – Class III – United States and Canada

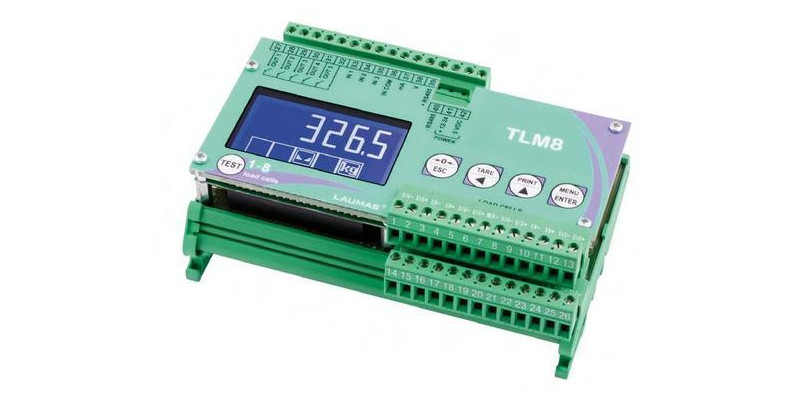

TLM8

  • Weight transmitter / indicator with backlit graphic LCD display, tranmissive STN, white on blue, 128×64 pixel resolutions, 60×32 mm visible area. Five-key keypad for the system calibration.
  • Dimensions : 148x92x60 mm.
  • 16-bit analog output: 0/4-20 mA; 0=5/10 ±5/10 V;
  • RS485 port (Modbus RTU/Laumas ASCII protocol).
  • 3 logic inputs, 5 logic relay outputs.
  • Omega/DIN rail mounting suitable for back panel or junction box.
  • Weighing system with 8 independent reading channels for load cells.
  • RS485 (Modbus RTU)/fieldbus transmission of the divisions for the 8 independent reading channels.
  • Detailed equalization of the 8 channels.
  • Detailed diagnostics of the 8 chennels.
  • Load distribution synoptic analysis on 8 chaneels with backups achive:stroing, retrieving, printing.
  • Load distribution automatic monitoring on 8 channels.
  • Significant events archive (zeroing, calibration, equalization, alarms): storing, retrieving, printing.
  • TEST key for direct access to the diagnostic functions.
Optional :
  • Additional RS485 port
  • Alibi memory
  • IP67 box version
Certifications :
  • OIML R76:2006, class III, 10000 divisions 0.2
  • GOST-R – Russia
  • UL Recognized component – United States and Canada

WDESK Series

  • Weight indicator in ABS, dimensions 122x226x164 mm. IP67 protection rating.
  • Different versions for various types of electrical connections : cable glands, D-SUB connectors, removable terminal.
  • Possible installations : wall, panel, column, desk.
  • Multiprogram : single loading/unloading and multi-product batchings, max 99 formulas.
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol).
  • 3 logic inputs, 5 relay outputs.
Optional :
  • Weight radio transmission (Wi-Fi)
  • Data storage on USB pen drive
  • 16-bit analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
  • Alibi memory
  • Additional RS485 port
  • Eight rechargeable batteries type AA 1.2 V
  • Fieldbuses : Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP, Ethernet TCP/IP for remote management (connectable to your PC, smartphone, tablet, etc. via web)
Certifications :
  • OIML R76:2006, class III, 10000 divisions 0.2 μV/VSI
  • OIML R61 – WELMEC Guide 8.8:2011 (M.I.D.)
On request :
  • GOST-R – Russia
  • UL Recognized component – United States and Canada
WDESK - G
  • Backlit graphic LCD display, 133×39 mm, 240×64 pixel.
  • 21-key membrane keyboard.
  • Statistical checking of prepackages.
Optional :
  • Barcode reader and PC keyboard management via USB
WDESK - L
  • Six-digit backlit LCD display (20 mm height).
  • Six-key membrance keyboard. 46 indicator sysmbols.
WDESK - R
  • Six-digit red LED display (20 mm height).
  • Six-key membrane keyboard. 16 indicator LED.

WINOX Series

  • Weight indicator in AISI 304 stainless steel, dimensions 206x286x108 mm, stainless steel adjustable bracket included (overall dimensions: 206x290x187 mm). IP68 protection rating (IP69K optional).
  • Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal.
  • Possible installations: wall, panel, column, desk.
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas.
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol).
  • 3 logic inputs, 5 relay outputs.
Optional :
  • IP69K protection rating
  • Weight radio transmission (Wi-Fi)
  • Data storage on USB pen drive
  • 16-bit analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
  • Alibi memory
  • Additional RS485 port
  • Power supply with internal rechargeable 12 V 2.2 Ah battery.
  • Fieldbuses : Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP, Ethernet TCP/IP for remote management (connectable to your PC, smartphone, tablet, etc. via web)
Certifications :
  • OIML R76:2006, class III, 10000 divisions 0.2 μV/VSI
  • OIML R61 – WELMEC Guide 8.8:2011 (M.I.D.)
On request :
  • GOST-R – Russia
  • UL Recognized component – United States and Canada
WINOX - 2G
  • Backlit graphic LCD display, 128×75 mm, 240×128 pixel.
  • 27-key membrane keyboard.
  • Statistical checking of prepackages.
Optional :
  • Barcode reader and PC keyboard management via USB
WDESK - G
  • Backlit graphic LCD display, 133×39 mm, 240×64 pixel.
  • 21-key membrane keyboard.
  • Statistical checking of prepackages.
Optional :
  • Barcode reader and PC keyboard management via USB
WDESK - L
  • Six-digit backlit LCD display (20 mm height).
  • Six-key membrane keyboard.
    46 indicator symbols.
WDESK - R
  • Six-digit red LED display (20 mm height).
  • Six-key membrane keyboard.
    16 indicator LED.
