Weighing, Batching & Dosing Controllers

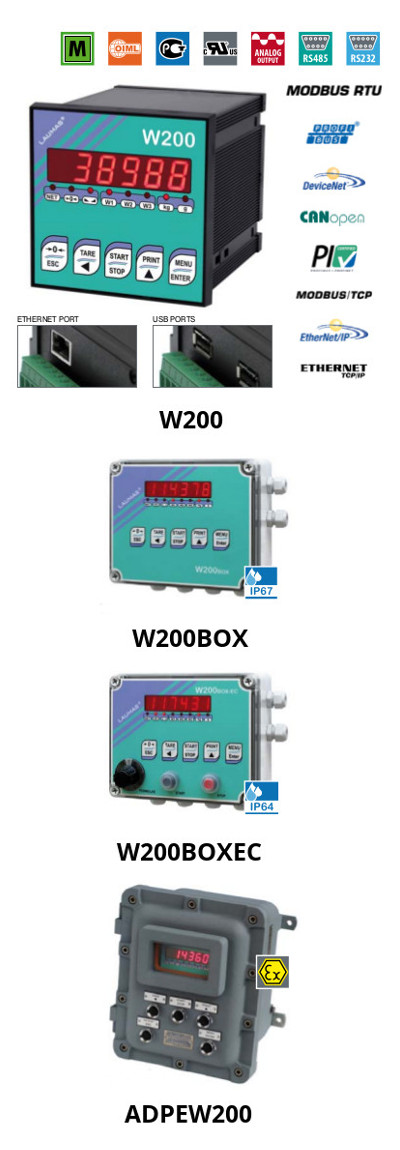

W200 Series

  • Weight indicator in DIN case, dimensions 96x96x130 mm. IP54 front panel protection (IP65 optional). Four-key membrane keyboard. Eight indicator LED.
  • Possible installations : panel, wall (W200BOX-EC)
  • Six-digit red LED display (14 mm height).
  • RS232 and RS485 pots (Modbus RTU/Laumas ASCII protocol).
  • 3 logic inputs, 5 relay outputs.
Optional :
  • Data storage on USB pen drive
  • 16-bit analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
  • Alibi memory
  • Additional RS485 port
  • Fieldbuses : Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP,
    Ethernet/IP, Ethernet TCP/IP for remote management (connectable to your
    PC, smartphone, tablet, etc. via web)
Certifications :
  • OIML R76:2006, class III, 10000 divisions 0.2 μV/VSI
  • OIML R61 – WELMEC Guide 8.8:2011 (M.I.D.)
On request :
  • GOST-R – Russia
  • UL Recognized component – United States and Canada
W200 series weight indicator into IP67/IP64 box
  • Polycarbonate box, dimensions 170x140x95 mm, four fixing holes Ø4 mm, 6 PG9 cable glands. Five-key membrane keyboard. Eight indicator LED.
  • Wall mounting.
W200BOXEC
  • External switch for formula selection (EC option), Sart and Stop buttons.
W200 series weight indicator into explosion proof box

The system is composed of:

  • Explosion proof box, ATEX II 2(1) GD approved, provided with heat-resistant transparent tempered glass window and 5 external buttons which performs the same functions as W200 keyboard.
  • W200 series weight indicator.
  • Passive fail-safe Zener barriers, ATEX II (1) GD approved.

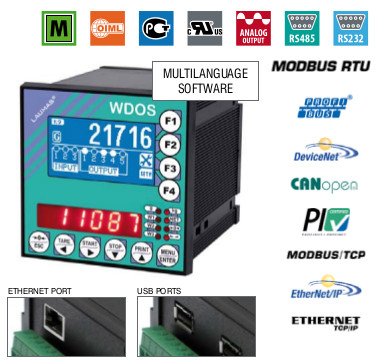

WDOS

  • Weight indicator in DIN case, dimensions 96x96x130 mm. IP54 front panel protection (IP65 optional). Ten-key membrane keyboard. Eight indicator LED.
  • Panel mounting.
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas.
  • Backlit graphic LCD display, 60×32 mm, 128×64 pixel.
  • Six-digit red LED display (10 mm height).
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol).
  • 3 logic inputs, 5 relay outputs.
Optional :
  • Data storage on USB pen drive
  • 16-bit analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
  • Alibi memory
  • Additional RS485 port
  • Fieldbuses : Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP,
    Ethernet/IP, Ethernet TCP/IP for remote management (connectable to your
    PC, smartphone, tablet, etc. via web)
Certifications :
  • OIML R76:2006, class III, 10000 divisions 0.2 μV/VSI
  • WELMEC Guide 8.8:2011 (M.I.D.)
On request :
  • GOST-R – Russia
  • UL Recognized component – United States and Canada

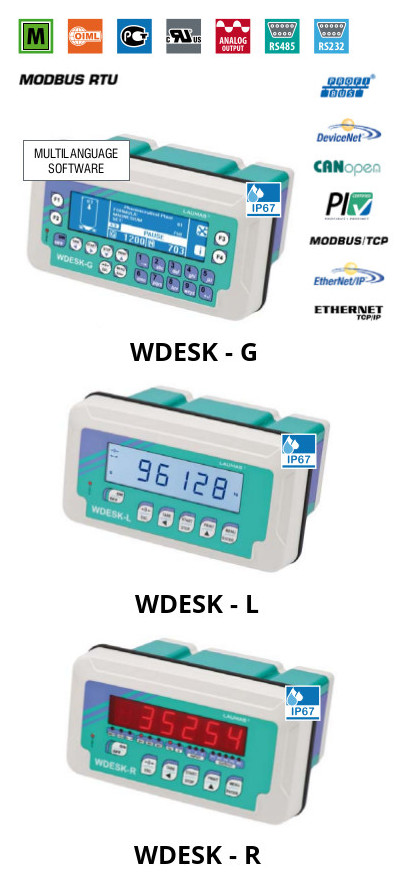

WDESK Series

  • Weight indicator in ABS, dimensions 122x226x164 mm. IP67 protection rating.
  • Different versions for various types of electrical connections : cable glands, D-SUB connectors, removable terminal.
  • Possible installations : wall, panel, column, desk.
  • Multiprogram : single loading/unloading and multi-product batchings, max 99 formulas.
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol).
  • 3 logic inputs, 5 relay outputs.
Optional :
  • Weight radio transmission (Wi-Fi)
  • Data storage on USB pen drive
  • 16-bit analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
  • Alibi memory
  • Additional RS485 port
  • Eight rechargeable batteries type AA 1.2 V
  • Fieldbuses : Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP, Ethernet TCP/IP for remote management (connectable to your PC, smartphone, tablet, etc. via web)
Certifications :
  • OIML R76:2006, class III, 10000 divisions 0.2 μV/VSI
  • OIML R61 – WELMEC Guide 8.8:2011 (M.I.D.)
On request :
  • GOST-R – Russia
  • UL Recognized component – United States and Canada
WDESK - G
  • Backlit graphic LCD display, 133×39 mm, 240×64 pixel.
  • 21-key membrane keyboard.
  • Statistical checking of prepackages.
Optional :
  • Barcode reader and PC keyboard management via USB
WDESK - L
  • Six-digit backlit LCD display (20 mm height).
  • Six-key membrance keyboard. 46 indicator sysmbols.
WDESK - R
  • Six-digit red LED display (20 mm height).
  • Six-key membrane keyboard. 16 indicator LED.

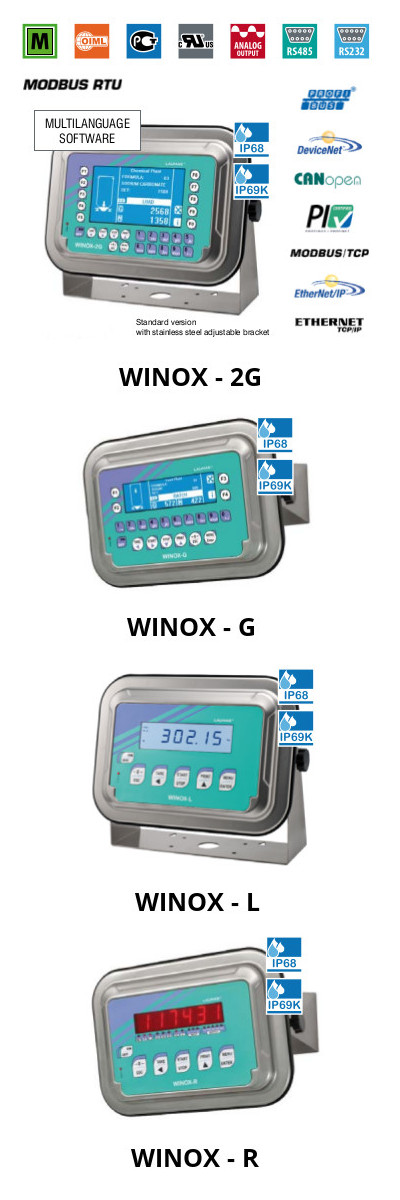

WINOX Series

  • Weight indicator in AISI 304 stainless steel, dimensions 206x286x108 mm, stainless steel adjustable bracket included (overall dimensions: 206x290x187 mm). IP68 protection rating (IP69K optional).
  • Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal.
  • Possible installations: wall, panel, column, desk.
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas.
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol).
  • 3 logic inputs, 5 relay outputs.
Optional :
  • IP69K protection rating
  • Weight radio transmission (Wi-Fi)
  • Data storage on USB pen drive
  • 16-bit analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
  • Alibi memory
  • Additional RS485 port
  • Power supply with internal rechargeable 12 V 2.2 Ah battery.
  • Fieldbuses : Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP, Ethernet TCP/IP for remote management (connectable to your PC, smartphone, tablet, etc. via web)
Certifications :
  • OIML R76:2006, class III, 10000 divisions 0.2 μV/VSI
  • OIML R61 – WELMEC Guide 8.8:2011 (M.I.D.)
On request :
  • GOST-R – Russia
  • UL Recognized component – United States and Canada
WINOX - 2G
  • Backlit graphic LCD display, 128×75 mm, 240×128 pixel.
  • 27-key membrane keyboard.
  • Statistical checking of prepackages.
Optional :
  • Barcode reader and PC keyboard management via USB
WDESK - G
  • Backlit graphic LCD display, 133×39 mm, 240×64 pixel.
  • 21-key membrane keyboard.
  • Statistical checking of prepackages.
Optional :
  • Barcode reader and PC keyboard management via USB
WDESK - L
  • Six-digit backlit LCD display (20 mm height).
  • Six-key membrane keyboard.
    46 indicator symbols.
WDESK - R
  • Six-digit red LED display (20 mm height).
  • Six-key membrane keyboard.
    16 indicator LED.

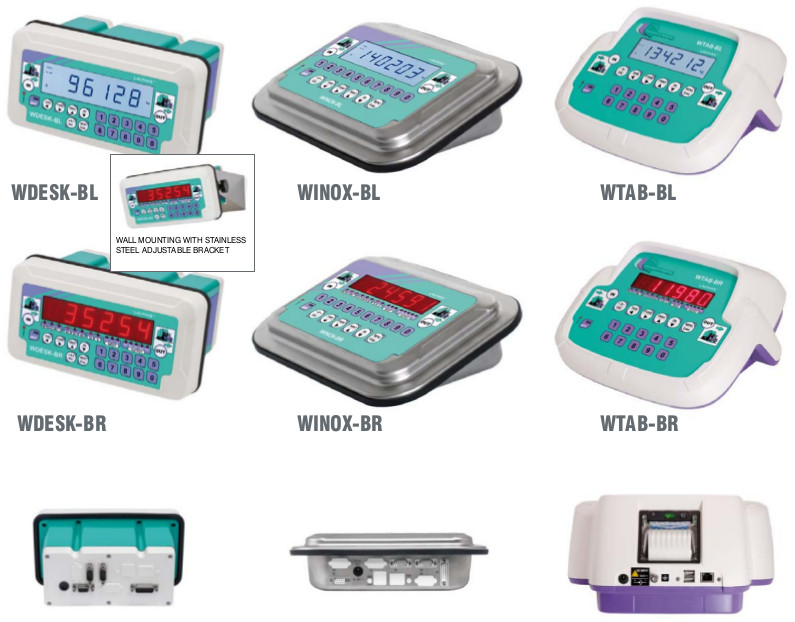

Weight Indicators for Weighbridge

  • Weight indicator in ABC or AISI 304 stainless steel.
  • Ideal for desk mounting (WDESK series:also wall mounting).
  • IP40 protection rating (D-SUB connectors).
  • BL version: six-digit backlit LCD display (20 mm height), 46 indicator symbols.
  • BR version: six-digit red LED display (20 mm height), 6 indicator LED.
  • 19-key membrane keyboard.
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol).
  • 3 logic inputs, 5 relay outputs.
Optional :
  • Weight radio transmission (Wi-Fi)
  • Alibi memory
  • Additional RS485 port
  • Integrated thermal printer (WTAB series)
Certifications :
  • OIML R76:2006, class III, 10000 divisions 0.2 μV/VSI
On request :
  • GOST-R – Russia
  • UL Recognized component – United States and Canada
Main Functions :
  • Double weighing (entry and exit), single weighing (entry and exit), double weighing with trailer, single weighing with trailer, multiple weighing (weighing of multi-compartment trucks).
  • Open input weighs archive (max 254).
  • Trucks database with password, max 999 preset tare that can be stored and recalled.
  • Up to10000 weighed values that can be saved in alibi memory (optional).
  • Traffic light management function (two-lights).
  • Totals management (loaded and unloaded material).
  • Printing of displayed weight, printing of open weighings, printing of totals, printing of last weighing.
  • Customizable print header(4 lines) via PC.
  • Supported external printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT. Other models on request.
